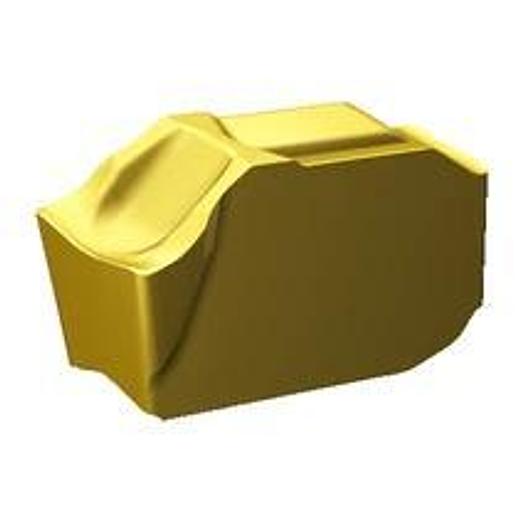

CoroMill QD indexable inserts

CoroMill® QD indexable insert for grooving

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fz max: 8.0000000000000002E-2mm
• fz min: 0.01 mm
• fz rec: 5.0000000000000003E-2 mm
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: QD-NE-0200-020E-ML 2040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper cutting width tolerance (CWTOLU): 0.055 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill QD -size E
• Cutting direction (HAND): N
• Grade: 2040
• Chip breaker, manufacturer designation (CBMD): ML
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• TMC Order: 1
• Lower cutting width tolerance (CWTOLL): 0.005 mm
• vc max: 250 m/min
• vc min: 240 m/min
• vc rec: 245 m/min
• Material classification level 1 (TMC1): M
• Grooving width nominal dimension C: 2 mm
• Corner radius right RE: 0.2 °
• Grade: 2040
• All ISO application areas: M
