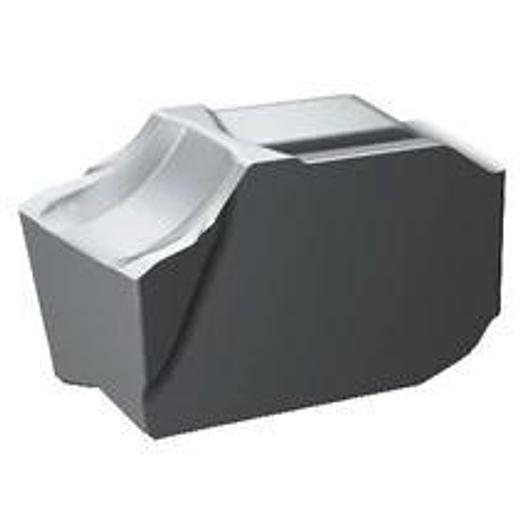

CoroMill QD indexable inserts

SANDVIK CoroMill QD indexable insert for grooving

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.25 mm
• Corner radius, right (RER): 0.25 mm
• fz max: 0.10000000000000001 mm
• fz min: 0.02 mm
• fz rec: 5.9999999999999998E-2 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NH-0400-025E-PL 1130
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper cutting width tolerance (CWTOLU): 0.055 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill QD -size H
• Cutting direction (HAND): N
• Grade: 1130
• Chip breaker, manufacturer designation (CBMD): PL
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower cutting width tolerance (CWTOLL): 0.005 mm
• vc max: 275~290 m/min
• vc min: 260~275 m/min
• vc rec: 270~280 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.25 °
• Grade: 1130
• All ISO application areas: PM
