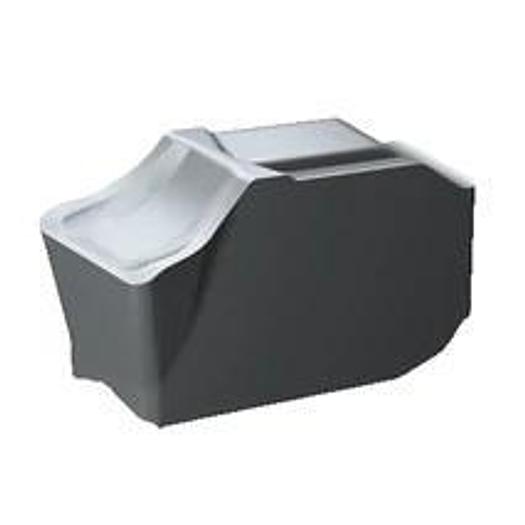

CoroMill QD indexable inserts

CoroMill® QD indexable insert for grooving

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fz max: 0.17999999999999999 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.13 mm
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: QD-NF-0239-020M-PM 1130
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper cutting width tolerance (CWTOLU): 0.105 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill QD -size F
• Cutting direction (HAND): N
• Grade: 1130
• Chip breaker, manufacturer designation (CBMD): PM
• Grooving width, nominal dimension (CW): 2.39 mm
• Substrate Type: WC
• TMC Order: 1
• Lower cutting width tolerance (CWTOLL): 0.005 mm
• vc max: 280 m/min
• vc min: 260 m/min
• vc rec: 270 m/min
• Material classification level 1 (TMC1): P
• Grooving width nominal dimension C: 2.39 mm
• Corner radius right RE: 0.2 °
• Grade: 1130
• All ISO application areas: P
