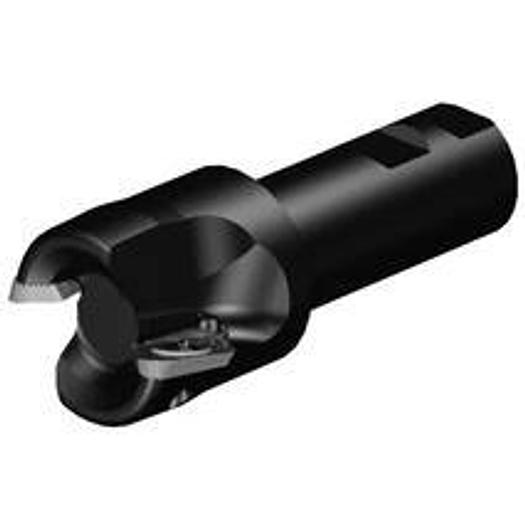

CoroMill 790 Corner milling cutter / end mill 90° - inch version

CoroMill® 790 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -inch: 1 1/4
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 31.75 mm
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 31400 1/min
• Immersion depth, max.(AZ): 3 mm
• Immersion angle, max.(RMPX): 13 deg
• Functional length (LF): 124,206 mm
• Manufacturer item number: RA790-050M32S2-22L
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 50.8 mm
• Cutting length, max. (APMXEFW): 6.5 mm
• Cutting length, max. (APMXFFW): 18 mm
• Cutting direction (HAND): R
• Standard document (STDLET): WE
• Standard number(STDNO): ISO3338-2
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 790 -size 22 (R790-2205)
• Tolerance shaft diameter (TCDCON): h6
• Tool design (BMC): Steel
• Cutting diameter: 50.8 mm
• Functional length L: 124,206 mm
• Adapter interface machine direction ADINTM: Weldon (DIN6535-HB) -inch: 1 1/4
