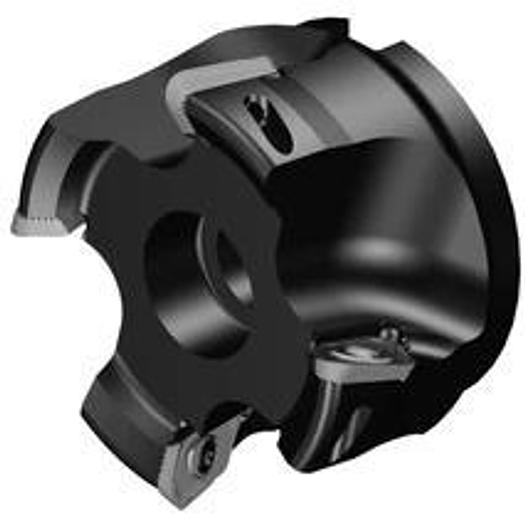

CoroMill 790 Corner milling cutter / end mill 90° - inch version

CoroMill® 790 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -B (cutter retaining screw) -inch: 1 1/2
• Number of cutting parts (CICT): 4
• Number of effective cutting edges, circumferential (ZEFP): 4

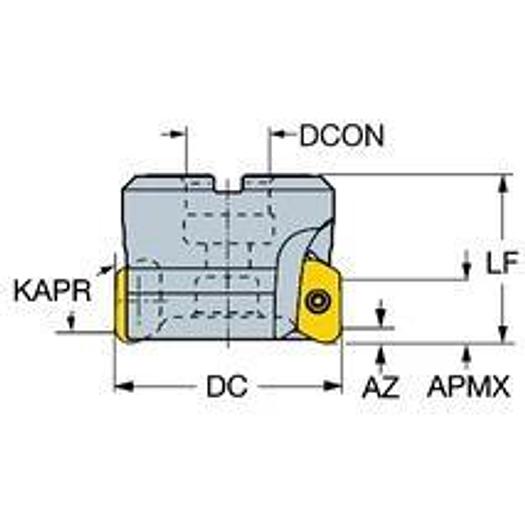

• DCONMS: 38.1 mm
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 20000 1/min
• Immersion depth, max.(AZ): 3 mm
• Immersion angle, max.(RMPX): 2.5 deg
• Functional length (LF): 62.99962 mm
• Manufacturer item number: RA790-101R38S1-22M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 101.6 mm
• Cutting length, max. (APMXEFW): 6.5 mm
• Cutting length, max. (APMXFFW): 18 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): B
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 790 -size 22 (R790-2205)
• Tool design (BMC): Steel
• Mounting diameter: 38.1 mm
• Functional length L: 62.99962 mm
• Number of effective cutting edges on the circumference: 4
• Cutting length max APMXFF: 18 mm
