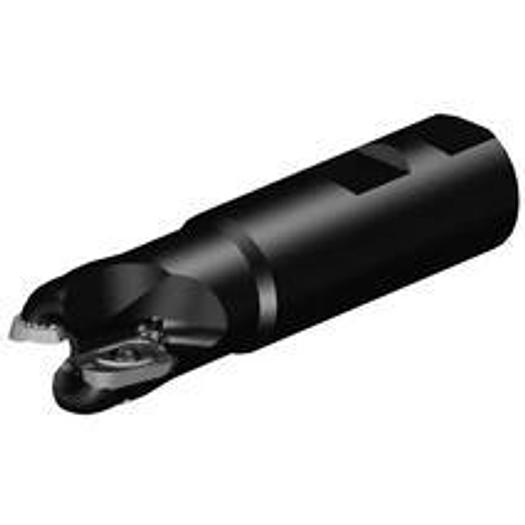

CoroMill 790 Corner milling cutter / end mill 90° - inch version

CoroMill® 790 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -inch: 1
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 25.4 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 60300 1/min
• Immersion depth, max.(AZ): 2 mm
• Plunge angle, max.(RMPX): 19 deg
• Functional length (LF): 101.6 mm
• Manufacturer item number: RA790-025M25S2-16L
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Usable length (LU): 38.1 mm
• Cutting diameter (DC): 25.4 mm
• Cutting length, max. (APMXEFW): 5 mm
• Cutting length, max. (APMXFFW): 12 mm
• Cutting direction (HAND): R
• Standard document (STDLET): WE
• Standard number(STDNO): ISO3338-2
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 790 -size 16 (R790-1604)
• Tolerance shaft diameter (TCDCON): h6
• Tool design (BMC): Steel
• Cutting diameter: 25.4 mm
• Functional length L: 101.6 mm
• Adapter interface machine direction ADINTM: Weldon (DIN6535-HB) -inch: 1
