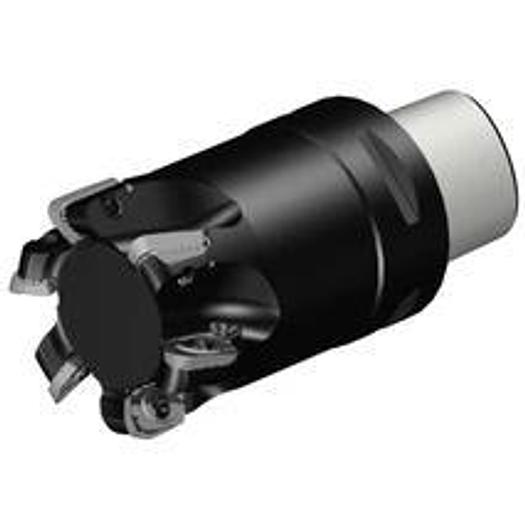

CoroMill 790 Corner face / end mill 90° - Metric version

CoroMill® 790 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C5
• Number of cutting parts (CICT): 6
• Number of effective cutting edges, circumferential (ZEFP): 6

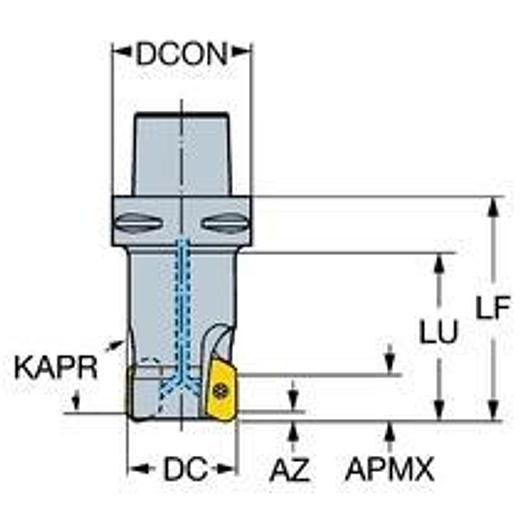

• DCONMS: 50 mm
• DFC: 35 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 28000 1/min
• Immersion angle, max.(RMPX): 6 deg
• Functional length (LF): 81 mm
• Manufacturer's ArtNo: R790-054C5S1-16H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 54 mm
• Cutting length, max. (APMXFFW): 12 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 790 -size 16 (R790-1604)
• Tool design (BMC): Steel
• Cutting diameter: 54 mm
• Functional length L: 81 mm
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C5
