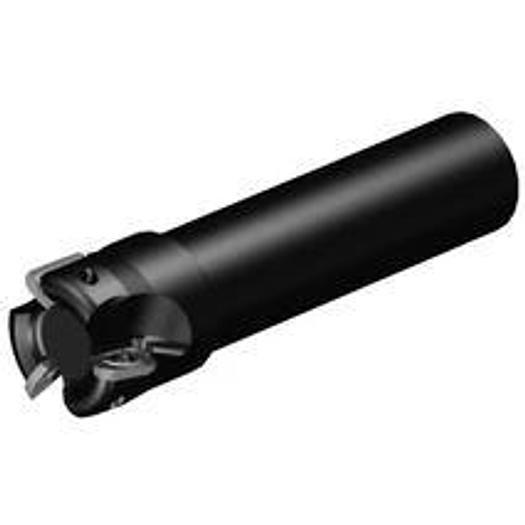

CoroMill 790 Corner face / end mill 90° - Metric version

CoroMill® 790 shoulder milling cutter

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 32.0
• Number of cutting parts (CICT): 3
• Number of effective cutting edges, circumferential (ZEFP): 3
• DCONMS: 32 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 42500 1/min
• Immersion depth, max.(AZ): 2 mm
• Plunge angle, max.(RMPX): 9 deg
• Functional length (LF): 150 mm
• Manufacturer's ArtNo: R790-040A32S1-16M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 40 mm
• Cutting length, max. (APMXEFW): 5 mm
• Cutting length, max. (APMXFFW): 12 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 790 -size 16 (R790-1604)
• Tool design (BMC): Steel
• Cutting diameter: 40 mm
• Functional length L: 150 mm
• Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -metric: 32.0
