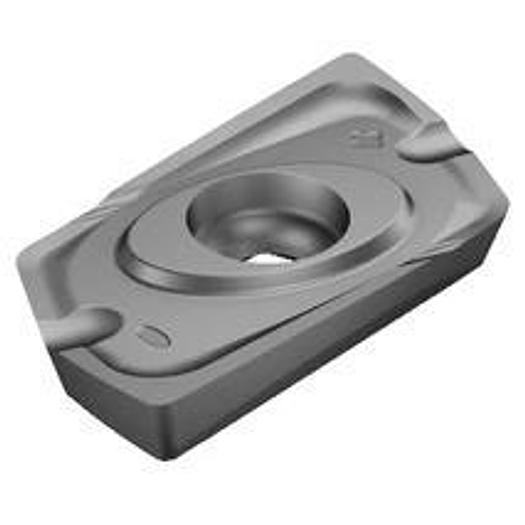

CoroMill 790 indexable inserts

CoroMill® 790 insert for milling

• Application Area: MU
• Corner radius (RE): 0.5 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.59999999999999998 mm
• fz min: 0.20000000000000001 mm
• fz rec: 0.29999999999999999 mm
• Manufacturer item number: R790-220505PH-NM H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1 mm
• Cutting length, limited (LE): 18 mm
• Cutting length, max. (APMX): 18 mm
• Cutting edge height (S): 5 mm
• Cutting plate width (W1): 16 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 790 -2205
• Cutting direction (HAND): R
• Grade: H13A
• Chip breaker, manufacturer designation (CBMD): NM
• Substrate Type: WC
• TMC Order: 1
• vc max: 970 m/min
• vc min: 850 m/min
• vc rec: 940 m/min
• Material classification level 1 (TMC1): N
• Corner radius R: 0.5 mm
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 790 -2205
• Cutting edge length limited L: 18
• Grade: H13A
• All ISO application areas: K|N
