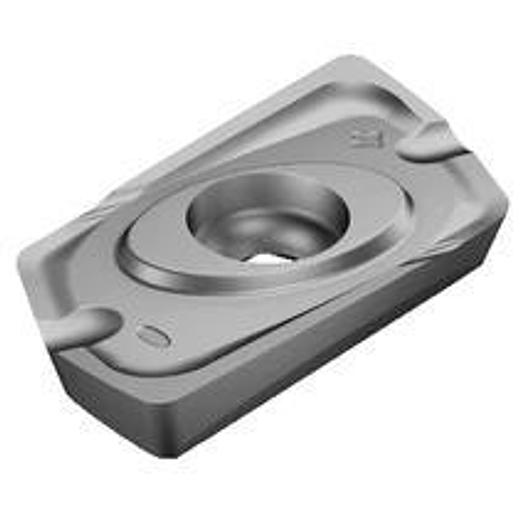

CoroMill 790 indexable inserts

CoroMill® 790 insert for milling

• Coating Process Type: PVD
• Corner radius (RE): 0.8 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• Manufacturer item number: R790-160408PH-PL 1130
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1 mm
• Cutting length, limited (LE): 12 mm
• Cutting length, max. (APMX): 12 mm
• Cutting edge height (S): 4 mm
• Cutting plate width (W1): 11 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 790 -1604
• Cutting direction (HAND): R
• Grade: 1130
• Chip breaker, manufacturer designation (CBMD): PL
• Substrate Type: WC
• Corner radius R: 0.8 mm
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 790 -1604
• Cutting edge length limited L: 12
• Grade: 1130
• All ISO application areas: P|M|N|S|H
