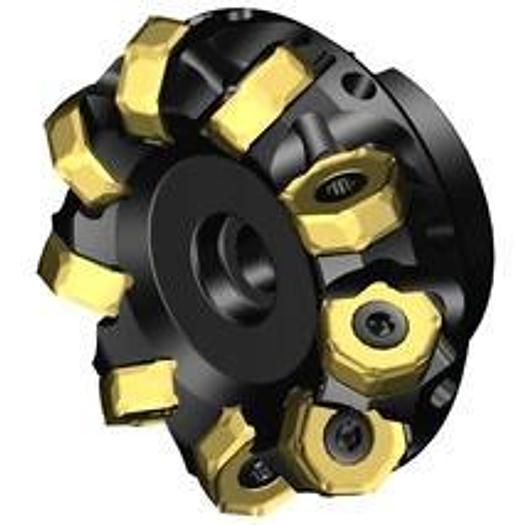

CoroMill 745 High feed milling cutter - inch version

CoroMill® 745 face milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -inch: 1
• Number of cutting parts (CICT): 9
• Number of effective cutting edges, circumferential (ZEFP): 9
• DCONMS: 25.4 mm
• Torque (TQ): 12 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5324 1/min
• Setting angle (KAPR): 25 deg
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: A725-076R25-21H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 76.2 mm
• Cutting diameter, max. (DCX): 99.6 mm
• Cutting length, max. (APMX): 2.8 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 745 -size 2109 (745R-2109)
• Tool design (BMC): Steel
• Cutting diameter: 76.2 mm
• Cutting diameter max: 99.6 mm
• Mounting diameter: 25.4 mm
• Functional length L: 50 mm
• Number of effective cutting edges on the circumference: 9
