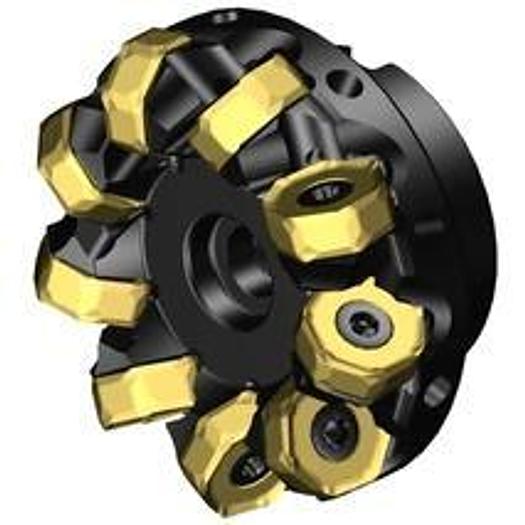

CoroMill 745 face milling cutter - inch version

CoroMill® 745 face milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -CIS -B (cutter retaining screw) -inch: 2 (DAH=80mm)
• Number of cutting parts (CICT): 10
• Number of effective cutting edges, circumferential (ZEFP): 10
• DCONMS: 50.8 mm
• Torque (TQ): 12 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 3675 1/min
• Setting angle (KAPR): 42 deg
• Functional length (LF): 63 mm
• Manufacturer's ArtNo: A745-160J51-21M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 160 mm
• Cutting diameter, max. (DCX): 175.2 mm
• Cutting length, max. (APMX): 5.2 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 745 -size 2109 (745R-2109)
• Tool design (BMC): Steel
• Cutting diameter: 160 mm
• Cutting diameter max: 175.2 mm
• Mounting diameter: 50.8 mm
• Functional length L: 63 mm
• Number of effective cutting edges on the circumference: 10
