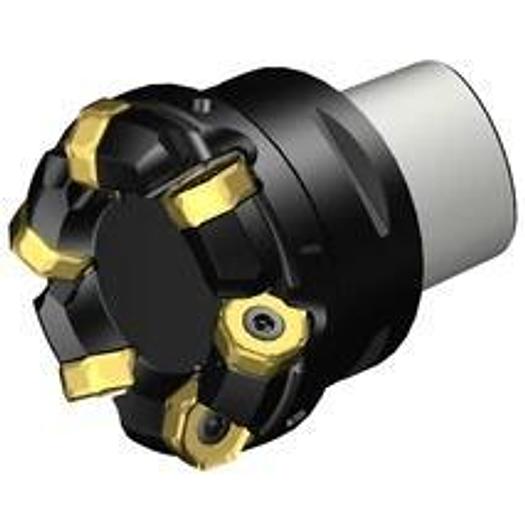

CoroMill 745 face milling cutter - metric version

CoroMill® 745 face milling cutter

Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C8

• Number of cutting parts (CICT): 6
• Number of effective cutting edges, circumferential (ZEFP): 6
• DCONMS: 80 mm
• Torque (TQ): 12 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5324 1/min
• Setting angle (KAPR): 42 deg
• Functional length (LF): 65 mm
• Manufacturer's ArtNo: 745-080C8-21M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 80 mm
• Cutting diameter, max. (DCX): 95.2 mm
• Cutting length, max. (APMX): 5.2 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 745 -size 2109 (745R-2109)
• Tool design (BMC): Steel
• Mounting diameter: 80 mm
• Cutting diameter: 80 mm
• Functional length L: 65 mm
• Number of effective cutting edges on the circumference: 6
