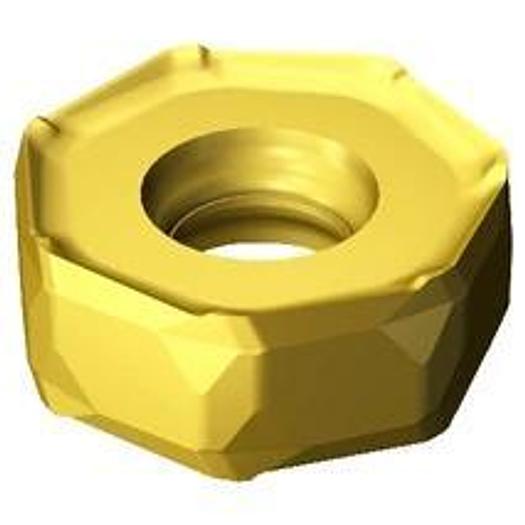

CoroMill 745 indexable inserts

CoroMill® 745 insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner chamfer width (CHW): 1.3 mm
• Corner chamfer angle (KCH): 17 deg
• Corner radius (RE): 1 mm
• Inscribed circle (IC): 21 mm
• Setting angle, main cutting edge (KRINS): 42 deg
• fz max: 0.41999999999999998 mm
• fz min: 0.17999999999999999 mm
• fz rec: 0.25 mm
• Manufacturer item number: 745L-2109E-M50 K20W
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 25 mm
• Cutting edge width (BS): 0.32 mm
• Cutting length, limited (LE): 8.5 mm
• Cutting length, max. (APMX): 5.2 mm
• Cutting edge height (S): 9 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 745/725 -size 2109
• Cutting direction (HAND): L
• Grade: K20W
• Chip breaker, manufacturer's designation (CBMD): M50
• Chipping face width (BN): 0.29 mm
• Rake face chamfer angle (GB): -23.3 deg
• Substrate Type: WC
• TMC Order: 1
• vc max: 190 m/min
• vc min: 135 m/min
• vc rec: 170 m/min
• Material classification level 1 (TMC1): K
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 745/725 -size 2109
• Corner radius R: 1 mm
• Grade: K20W
• All ISO application areas: K
