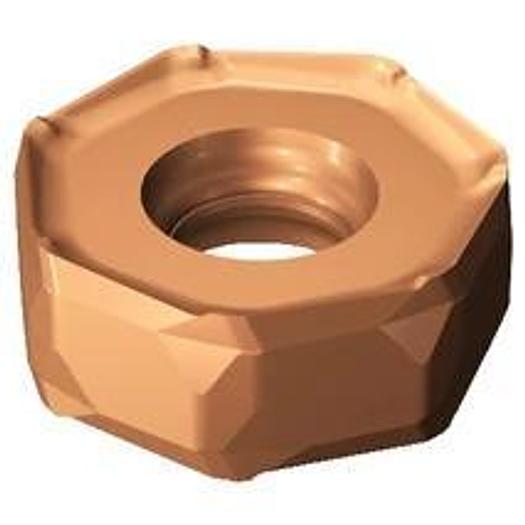

CoroMill 745 indexable inserts

CoroMill® 745 insert for milling

• Application Area: MU
• Coating Process Type: PVD
• Corner radius (RE): 1 mm
• Inscribed circle (IC): 21 mm
• Setting angle, main cutting edge (KRINS): 42 deg
• fz max: 0.29999999999999999 mm
• fz min: 0.14999999999999999 mm
• fz rec: 0.20999999999999999 mm
• Manufacturer item number: 745R-2109E-M31 1020
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 150 mm
• Cutting edge width (BS): 1.9 mm
• Cutting length, limited (LE): 7.1 mm
• Cutting length, max. (APMX): 4.5 mm
• Cutting edge height (S): 9 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 745/725 -size 2109
• Cutting direction (HAND): R
• Grade: 1020
• Chip breaker, manufacturer's designation (CBMD): M31
• Chipping face width (BN): 0.2 mm
• Chipping face chamfer angle (GB): -30 deg
• Substrate Type: WC
• TMC Order: 1
• vc max: 180 m/min
• vc min: 145 m/min
• vc rec: 165 m/min
• Material classification level 1 (TMC1): K
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 745/725 -size 2109
• Corner radius R: 1 mm
• Grade: 1020
• All ISO application areas: K
