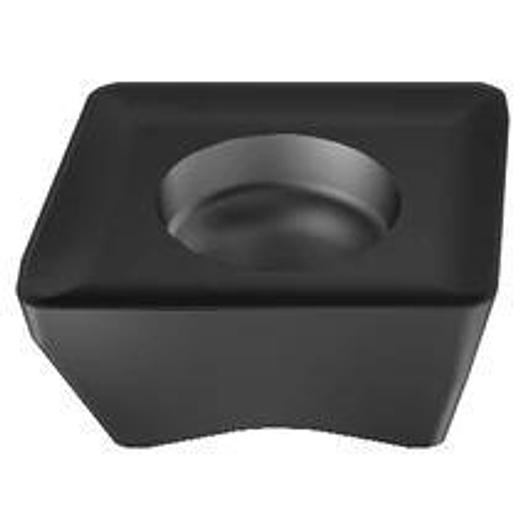

CoroMill 690 shell end mills indexable inserts

CoroMill® 690 insert for milling

• Coating Process Type: PVD
• Corner radius (RE): 6.35 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• Manufacturer's ArtNo: 690-140664M-E-SL S30T
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1 mm
• Cutting length, limited (LE): 16.75 mm
• Cutting edge height (S): 6.35 mm
• Cutting plate width (W1): 14.5 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 690 -140664 E
• Cutting direction (HAND): R
• Grade: S30T
• Chip breaker, manufacturer designation (CBMD): SL
• Substrate Type: WC
• Corner radius R: 6.35 mm
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 690 -140664 E
• Cutting edge length limited L: 16.75
• Grade: S30T
• All ISO application areas: K|S
