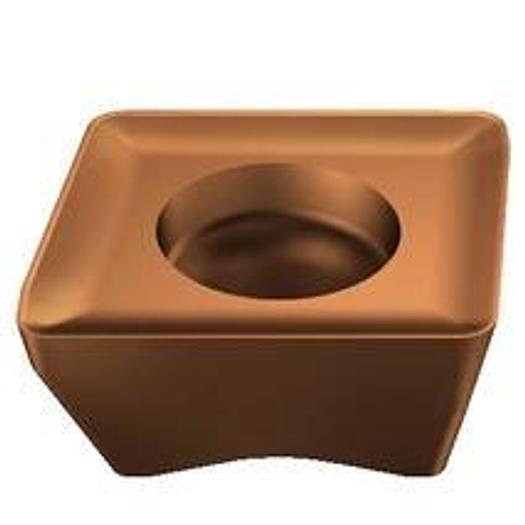

CoroMill 690 shell end mills indexable inserts

CoroMill® 690 insert for milling

• Application Area: MU
• Coating Process Type: PVD
• Corner radius (RE): 0.8 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.20000000000000001 mm
• fz min: 5.0000000000000003E-2 mm
• fz rec: 0.10000000000000001 mm
• Manufacturer's ArtNo: 690-100508M-E-SL 1030
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1 mm
• Cutting length, limited (LE): 10 mm
• Cutting edge height (S): 5.2 mm
• Cutting plate width (W1): 10 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 690 -1005 E
• Cutting direction (HAND): R
• Grade: 1030
• Chip breaker, manufacturer designation (CBMD): SL
• Substrate Type: WC
• TMC Order: 1
• vc max: 45 m/min
• vc min: 40 m/min
• vc rec: 40 m/min
• Material classification level 1 (TMC1): S
• Corner radius R: 0.8 mm
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 690 -1005 E
• Cutting length limited L: 10
• Grade: 1030
• All ISO application areas: K|S
