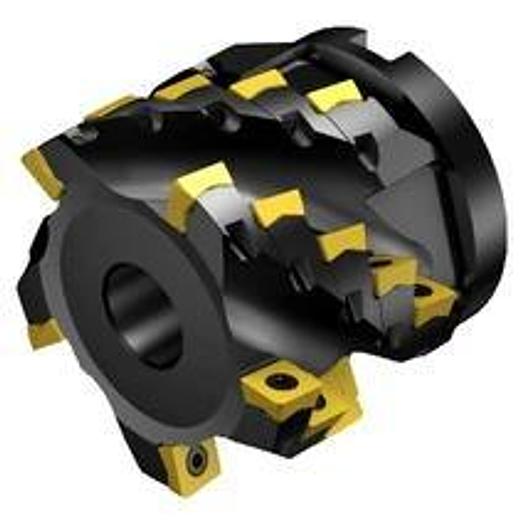

CoroMill 690 Shell End Mills - Metric Version

CoroMill® 690 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric:|27
• Number of effective cutting edges, circumferential (ZEFP): 3
• DCONMS: 27 mm
• Differential division (CPDF): 1
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
• Functional length (LF): 80 mm
• Manufacturer's ArtNo: 690-063Q27-1046M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 63 mm
• Cutting length, max. (APMXFFW): 46 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 690 -size 10E (690-100508E)
• Tool design (BMC): Steel
• Mounting diameter: 27 mm
• Number of effective cutting edges on the circumference: 3
• Functional length L: 80 mm
• Cutting diameter: 63 mm
