CoroMill 690 Shell End Mills - Metric Version

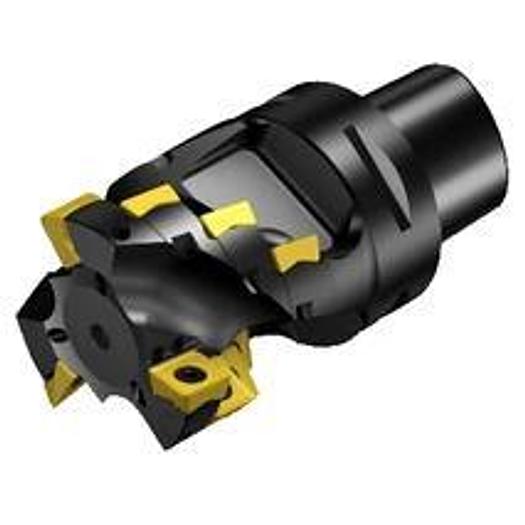

CoroMill® 690 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C5
• Number of effective cutting edges, circumferential (ZEFP): 3
• DCONMS: 50 mm
• DFC: 35 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
• Functional length (LF): 90 mm
• Manufacturer's ArtNo: 690-050C5-1053H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Usable length (LU): 70 mm
• Cutting diameter (DC): 50 mm
• Cutting length, max. (APMXFFW): 53 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 690 -size 10E (690-100508E)
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C5
• Cutting diameter: 50 mm
• Cutting length max APMXFF: 53 mm
• Functional length L: 90 mm
