CoroMill 690 Shell End Mills - Inch Size

CoroMill 690 Shell End Mills - Inch Size

$2,260 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

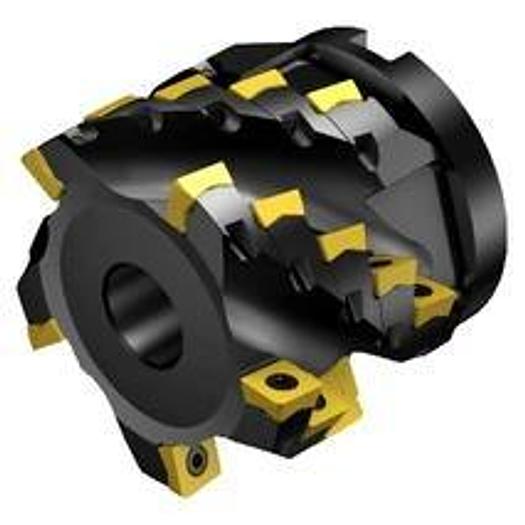

CoroMill® 690 shoulder milling cutter


  • Adapter interface machine direction(ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -inch:|3/4
  • Number of effective cutting edges, circumferential (ZEFP): 3
  • DCONMS: 19.05 mm
  • Torque (TQ): 3 Nm
  • Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
  • Functional length (LF): 76 mm
  • Manufacturer's ArtNo: A690-051R19-1046H
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 10000
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Cutting diameter (DC): 50.8 mm
  • Cutting length, max. (APMXFFW): 46 mm
  • Cutting direction (HAND): R
  • Standard Document (STDLET): A
  • Standard Number (STDNO): ISO6462
  • Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 690 -size 10E (690-100508E)
  • Tool design (BMC): Steel
  • Mounting diameter: 19.05 mm
  • Number of effective cutting edges on the circumference: 3
  • Functional length L: 76 mm
  • Cutting diameter: 50.8 mm


Specifications

ManufacturerSANDVIK COROMANT
ModelA690-051R19-1046H
Year2024
ConditionNew
Serial Number520 A690-051R19-1046H
Stock Number.
