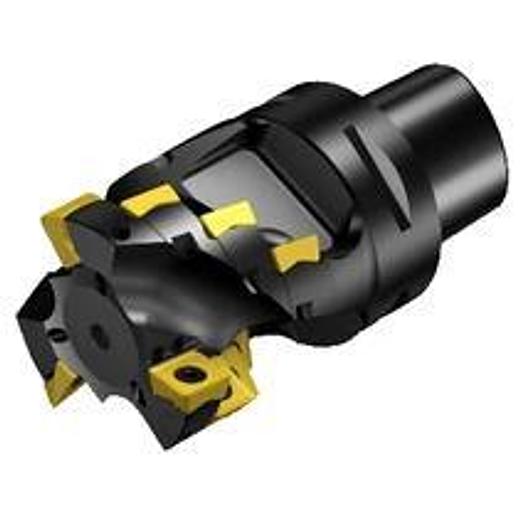

CoroMill 690 Shell End Mills - Inch Size

CoroMill® 690 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C6
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 63 mm
• DFC: 44 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
• Functional length (LF): 83 mm
• Manufacturer's ArtNo: A690-038C6-1046H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Usable length (LU): 48 mm
• Cutting diameter (DC): 38.1 mm
• Cutting length, max. (APMXFFW): 46 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 690 -size 10E (690-100508E)
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C6
• Cutting diameter: 38.1 mm
• Cutting length max APMXFF: 46 mm
• Functional length L: 83 mm
