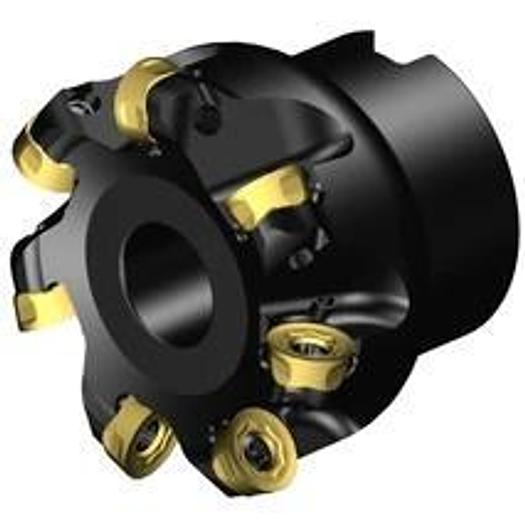

CoroMill 600 - Milling cutter for turbine blades - Metric version

CoroMill® 600 face milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric:|22
• Number of cutting parts (CICT): 7
• Number of effective cutting edges, circumferential (ZEFP): 7
• DCONMS: 22 mm
• Differential division (CPDF): 1
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 16700 1/min
• Immersion depth, max.(AZ): 2 mm
• Immersion angle, max.(RMPX): 2.5 deg
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: 600-063Q22-12H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 50 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 51 mm
• Cutting diameter, max. (DCX): 63 mm
• Cutting length, max. (APMXEFW): 6 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 600 -size 1252 (600-1252)
• Tool design (BMC): Steel
• Cutting diameter: 51 mm
• Cutting diameter max: 63 mm
• Mounting diameter: 22 mm
• Functional length L: 50 mm
• Number of effective cutting edges on the circumference: 7
