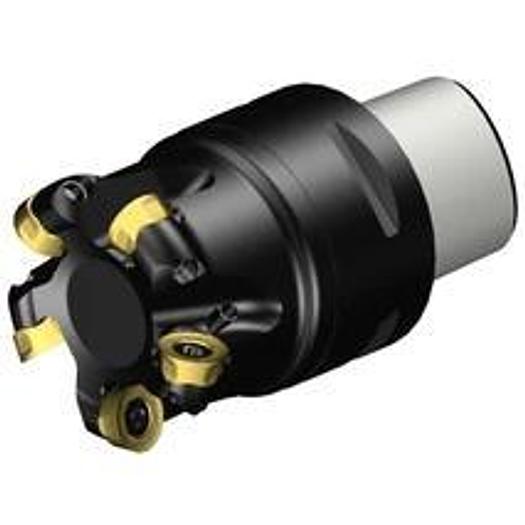

CoroMill 600 - Milling cutter for turbine blades - Metric version

CoroMill® 600 face milling cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C4
• Number of cutting parts (CICT): 5
• Number of effective cutting edges, circumferential (ZEFP): 5
• DCONMS: 40 mm
• Differential division (CPDF): 1
• Speed, max. (-81, -82: Maximum speed)(RPMX): 22200 1/min
• Immersion depth, max.(AZ): 1.5 mm
• Plunge angle, max.(RMPX): 4 deg
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: 600-042C4-10H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 50 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 32 mm
• Cutting diameter, max. (DCX): 42 mm
• Cutting length, max. (APMXEFW): 5 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 600 -size 1045 (600-1045)
• Tool design (BMC): Steel
• Mounting diameter: 40 mm
• Number of effective cutting edges on the circumference: 5
