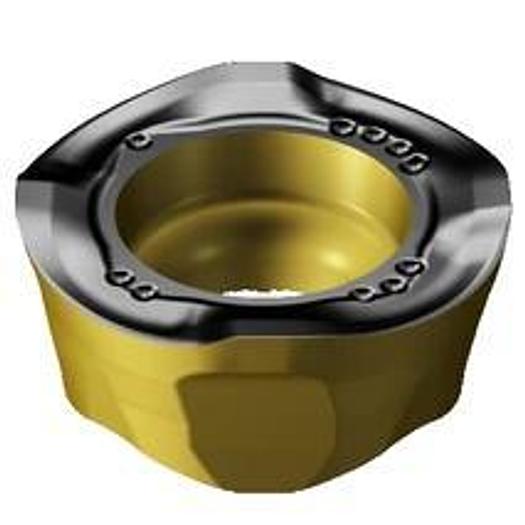

CoroMill 600 indexable inserts

CoroMill® 600 insert for milling

• Coating Process Type: CVD
• Corner radius (RE): 6 mm
• Inscribed circle (IC): 12 mm
• Manufacturer item number: 600R-1252M-MM M30B
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 15 mm
• Cutting edge width (BS): 1 mm
• Cutting length, max. (APMX): 4.6 mm
• Cutting edge height (S): 5.2 mm
• Cutting insert shape (SC): R
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 600 -size 1252
• Cutting direction (HAND): R
• Grade: M30B
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• Corner radius R: 6 mm
• Grade: M30B
• All ISO application areas: M
