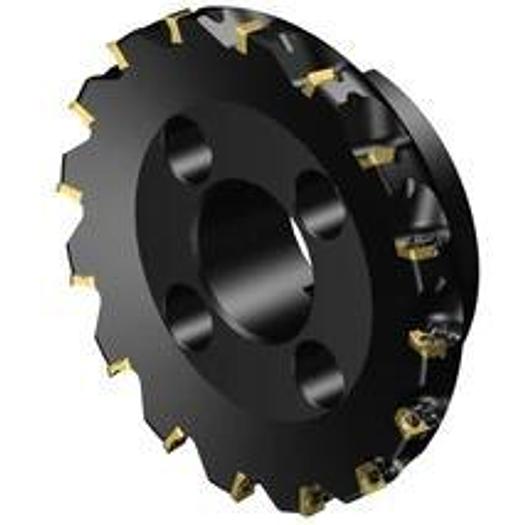

CoroMill 590 Century face milling cutter - inch version

CoroMill® Century shoulder milling cutters

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -C (4 bolts) -inch: 2 1/2
• Number of cutting parts (CICT): 16
• Number of effective cutting edges, circumferential (ZEFP): 16
• DCONMS: 63.5 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 15600 1/min
• Functional length (LF): 63 mm
• Manufacturer's ArtNo: RA590-203R63S-11M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Bolt circle diameter (DBC): 101.6 mm
• Cutting diameter (DC): 203.2 mm
• Cutting length, max. (APMXFFW): 11 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): C
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 590 -size 11 (R590-1105)
• Tool design (BMC): Steel
• Mounting diameter: 63.5 mm
• Functional length L: 63 mm
• Number of effective cutting edges on the circumference: 16
• Cutting length max APMXFF: 11 mm
