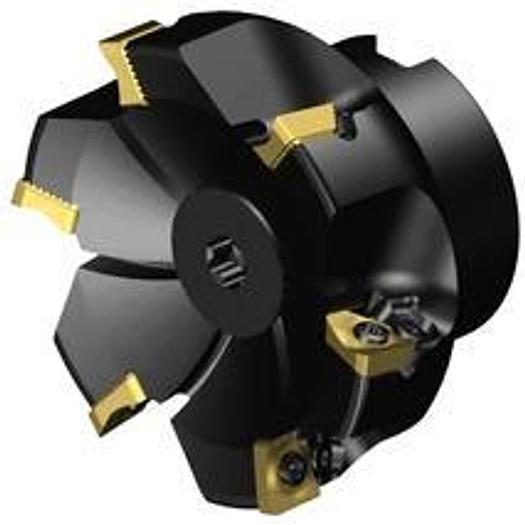

CoroMill 590 Century face milling cutter - metric version

CoroMill® Century shoulder milling cutters

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric:|27
• Number of cutting parts (CICT): 6
• Number of effective cutting edges, circumferential (ZEFP): 6
• DCONMS: 27 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 27500 1/min
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: R590-080Q27A-11M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 80 mm
• Cutting length, max. (APMXFFW): 11 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 590 -size 11 (R590-1105)
• Tool design (BMC): Aluminum
• Mounting diameter: 27 mm
• Functional length L: 50 mm
• Number of effective cutting edges on the circumference: 6
• Cutting length max APMXFF: 11 mm
