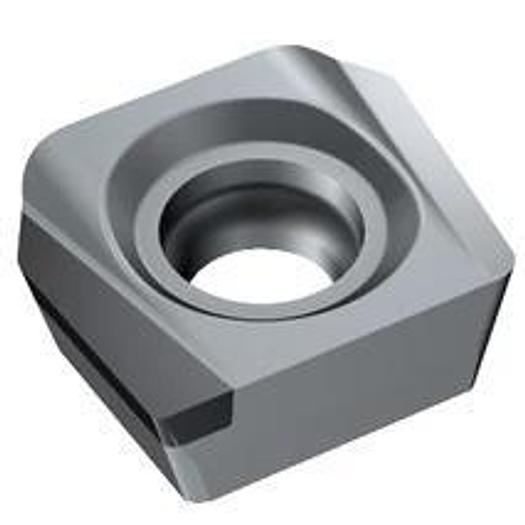

CoroMill 590 Century indexable inserts

CoroMill® Century insert for milling

• Corner chamfer width (CHW): 1 mm
• Corner chamfer angle (KCH): 30 deg
• Setting angle, main cutting edge (KRINS): 90 deg
• Manufacturer item number: L590-1105H-ZC2-KW CB50
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BH
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 390 mm
• Cutting edge width (BS): 5,916 mm
• Cutting length, limited (LE): 3 mm
• Cutting length, max. (APMX): 1.2 mm
• Cutting edge height (S): 5 mm
• Cutting plate width (W1): 11.5 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 590 -1105
• Cutting direction (HAND): L
• Grade: CB50
• Chip breaker, manufacturer designation (CBMD): KW
• Substrate Type: CBN
• Grade: CB50
• All ISO application areas: K
