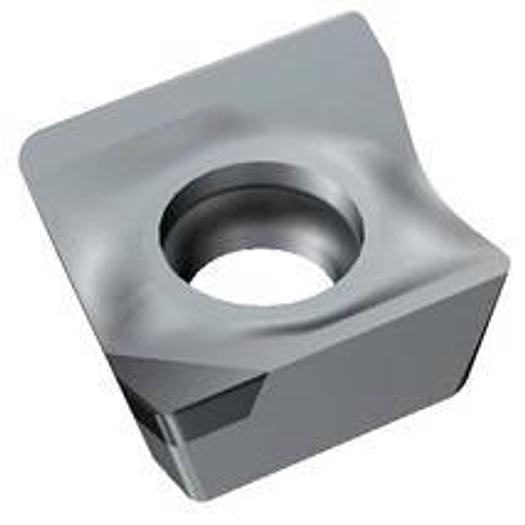

CoroMill 590 Century indexable inserts

CoroMill® Century insert for milling

• Application Area: MU
• Corner chamfer width (CHW): 1 mm
• Corner chamfer angle (KCH): 45 deg
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.29999999999999999 mm
• fz min: 5.0000000000000003E-2 mm
• fz rec: 0.14999999999999999 mm
• Manufacturer item number: R590-1105H-PC2-NL CD10
• Manufacturer: SANDVIK COROMANT
• IC Code: 18100
• ISO Cutting Tool Material: DP
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 200 mm
• Cutting edge width (BS): 1.5 mm
• Cutting length, limited (LE): 3 mm
• Cutting length, max. (APMX): 2 mm
• Cutting edge height (S): 5 mm
• Cutting plate width (W1): 11.5 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 590 -1105
• Cutting direction (HAND): R
• Grade: CD10
• Chip breaker, manufacturer's designation (CBMD): NL
• Chipping face width (BN): 0.3 mm
• Chipping face chamfer angle (GB): 5 deg
• Substrate Type: PCD
• TMC Order: 1
• vc max: 1850 m/min
• vc min: 1250 m/min
• vc rec: 1600 m/min
• Material classification level 1 (TMC1): N
• Grade: CD10
• All ISO application areas: N
