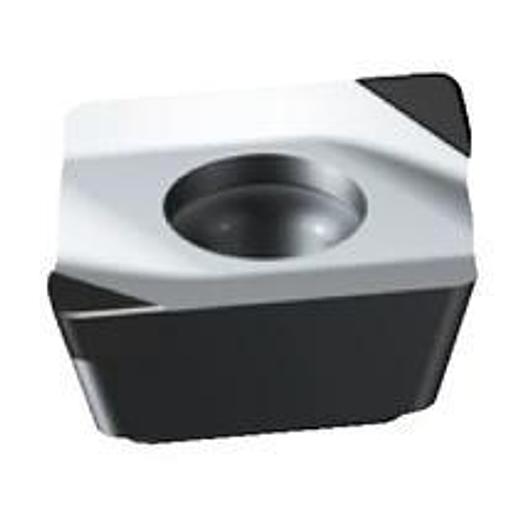

CoroMill 590 Century indexable inserts

CoroMill® Century insert for milling

• Application Area: MU
• Corner radius (RE): 0.8 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.29999999999999999 mm
• fz min: 0.10000000000000001 mm
• fz rec: 0.20000000000000001 mm
• Manufacturer item number: R590-110508H-PR2-KM CB50
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BH
• Life Cycle Status (LCS): 20
• face radius (BSR): 25 mm
• Cutting edge width (BS): 1.5 mm
• Cutting length, limited (LE): 2 mm
• Cutting length, max. (APMX): 2 mm
• Cutting edge height (S): 5 mm
• Cutting plate width (W1): 11.5 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 590 -1105
• Cutting direction (HAND): R
• Grade: CB50
• Chip breaker, manufacturer designation (CBMD): KM
• Chipping face width (BN): 0.2 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 910 m/min
• vc min: 490 m/min
• vc rec: 670 m/min
• Material classification level 1 (TMC1): K
• Grade: CB50
• All ISO application areas: K
• Recommended variety: K
