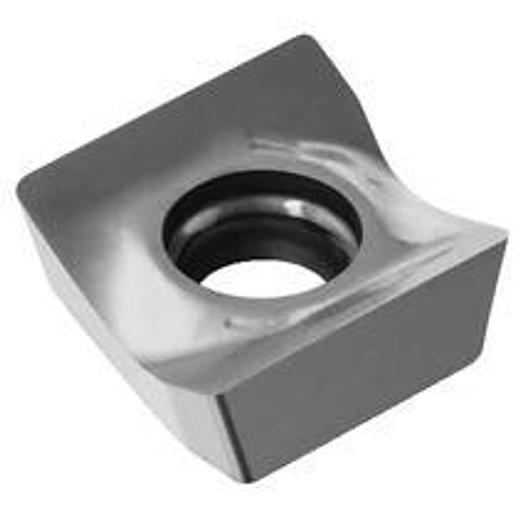

CoroMill 590 Century indexable inserts

SANDVIK CoroMill Century insert for milling

• Application Area: MU
• Coating Process Type: PVD
• Corner radius (RE): 0.8 mm
• Setting angle, main cutting edge (KRINS): 90 deg
• fz max: 0.14999999999999999 mm
• fz min: 5.0000000000000003E-2 mm
• fz rec: 8.0000000000000002E-2 mm
• Manufacturer item number: R590-110508H-PL 1130
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 200 mm
• Cutting edge width (BS): 1.7 mm
• Cutting length, limited (LE): 11 mm
• Cutting length, max. (APMX): 10 mm
• Cutting edge height (S): 5 mm
• Cutting plate width (W1): 11.5 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 590 -1105
• Cutting direction (HAND): R
• Grade: 1130
• Chip breaker, manufacturer designation (CBMD): PL
• Substrate Type: WC
• TMC Order: 1
• vc max: 265 m/min
• vc min: 215 m/min
• vc rec: 250 m/min
• Material classification level 1 (TMC1): P
• Grade: 1130
• All ISO application areas: P
