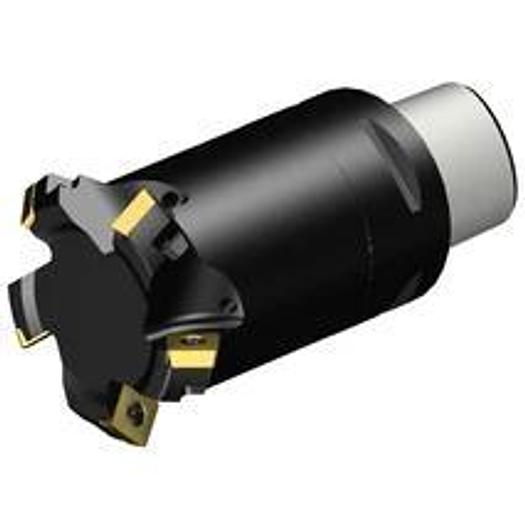

CoroMill 495 Chamfering Cutter - Metric Version

CoroMill® 495 chamfer cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C5
• Number of cutting parts (CICT): 6
• Number of effective cutting edges, circumferential (ZEFP): 6
• APMXPCB: 5.4675 mm
• APMXPCF: 5.4675 mm
• DCONMS: 50 mm
• Torque (TQ): 1.4 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5300 1/min
• Setting angle (KAPR1): 45 deg
• Setting angle (KAPR2): 45 deg
• Functional length (LF1): 75 mm
• Functional length (LF2): 63.19 mm
• Manufacturer's ArtNo: 495-050C5-4509H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Body diameter (BD): 49,716 mm
• Coolant pressure (CP): 20 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 54.651 mm
• Life Cycle Status (LCS): 20
• Cutting diameter (DC1): 50.5 mm
• Cutting diameter, max. (DCX): 61,905 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 495 -size 09 (495-09T3M-XL)
• Mounting diameter: 50 mm
• Number of effective cutting edges on the circumference: 6
