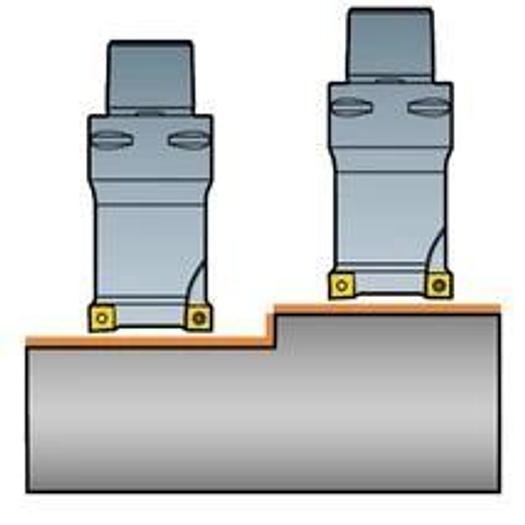

CoroMill 490 end mills and shoulder mills - inch version

CoroMill® 490 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C6
• Number of cutting parts (CICT): 3
• Number of effective cutting edges, circumferential (ZEFP): 3
• DCONMS: 63 mm
• DFC: 44 mm
• Torque (TQ): 1.2 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 20000 1/min
• Functional length (LF): 76.2 mm
• Manufacturer's ArtNo: A490-025C6-08M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Useful length (LU): 49.1998 mm
• Cutting diameter (DC): 25.4 mm
• Cutting length, max. (APMXFFW): 5.5 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 490 -size 08 (490R-08T308..)
• Tool design (BMC): Steel
• Cutting diameter: 25.4 mm
• Functional length L: 76.2 mm
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C6
