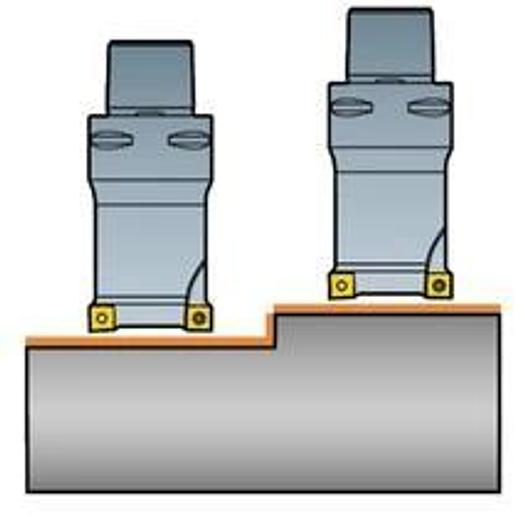

CoroMill 490 end mills and shoulder mills - inch version

CoroMill® 490 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C5
• Number of cutting parts (CICT): 4
• Number of effective cutting edges, circumferential (ZEFP): 4
• DCONMS: 50 mm
• DFC: 35 mm
• Differential division (CPDF): 1
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 13600 1/min
• Functional length (LF): 76.2 mm
• Manufacturer's ArtNo: A490-051C5-14M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 76.2 mm
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 50.8 mm
• Cutting length, max. (APMXFFW): 10 mm
• Cutting direction (HAND): R
• Standard number(STDNO): ISO26623-1
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 490 -size 14 (490R-1404..)
• Tool design (BMC): Steel
• Cutting diameter: 50.8 mm
• Functional length L: 76.2 mm
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C5
