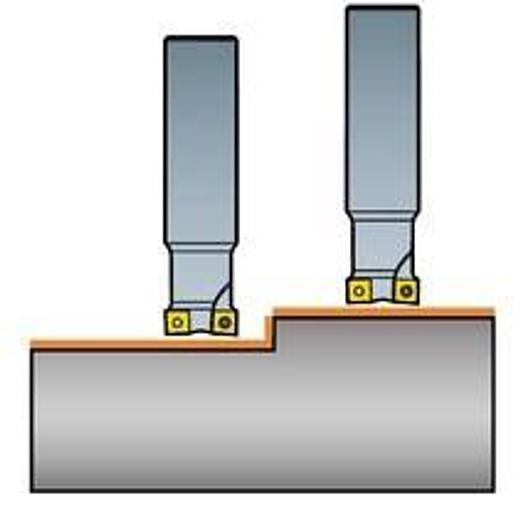

CoroMill 490 face and shoulder milling cutters - inch version

CoroMill® 490 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -inch: 1
• Number of cutting parts (CICT): 3
• Number of effective cutting edges, circumferential (ZEFP): 3

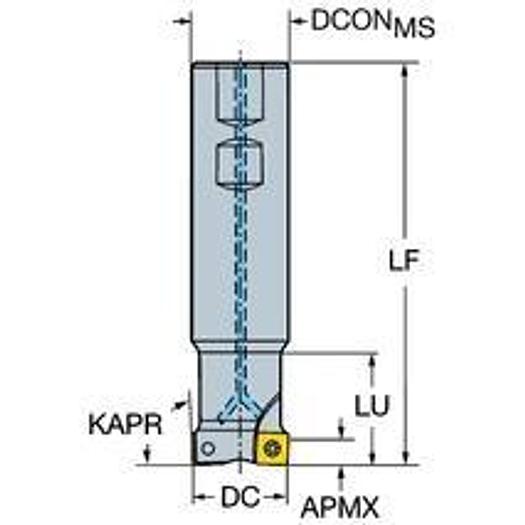

• DCONMS: 25.4 mm
• Torque (TQ): 1.2 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 40000 1/min
• Functional length (LF): 95.25 mm
• Manufacturer's ArtNo: A490-025M25-08M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 31.75 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 31.75 mm
• Cutting diameter (DC): 25.4 mm
• Cutting length, max. (APMXFFW): 5.5 mm
• Cutting direction (HAND): R
• Standard document (STDLET): WE
• Standard number(STDNO): ISO3338-2
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 490 -size 08 (490R-08T308..)
• Tolerance shaft diameter (TCDCON): h6
• Tool design (BMC): Steel
• Cutting diameter: 25.4 mm
• Functional length L: 95.25 mm
• Adapter interface machine direction ADINTM: Weldon (DIN6535-HB) -inch: 1
