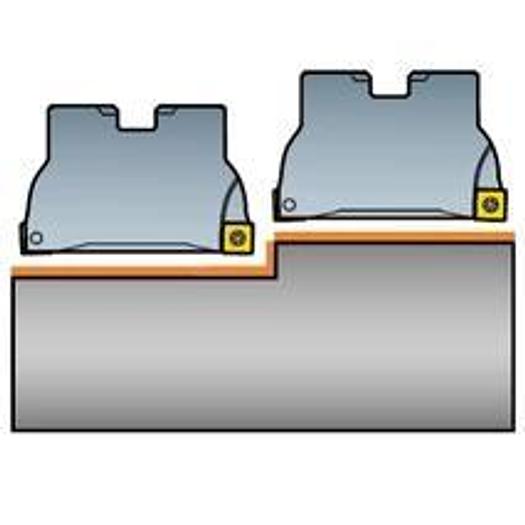

CoroMill 490 face and shoulder milling cutters - inch version

CoroMill® 490 shoulder milling cutter

• Adapter interface machine direction(ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -inch:|3/4
• Number of cutting parts (CICT): 5
• Number of effective cutting edges, circumferential (ZEFP): 5

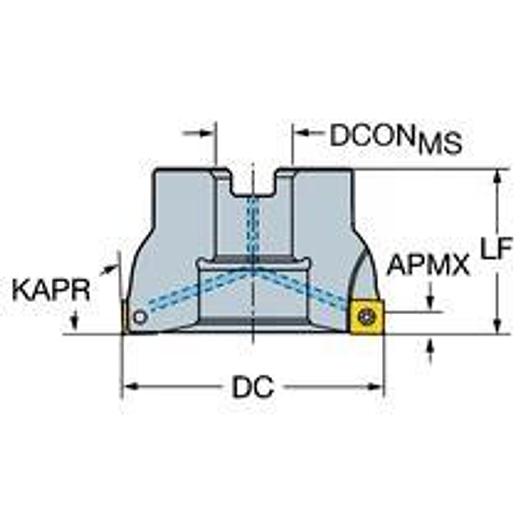

• DCONMS: 19.05 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 22200 1/min
• Functional length (LF): 40,005 mm
• Manufacturer's ArtNo: A490-051R19-14H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 50.8 mm
• Cutting length, max. (APMXFFW): 10 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 490 -size 14 (490R-1404..)
• Tool design (BMC): Steel
• Mounting diameter: 19.05 mm
• Functional length L: 40,005 mm
• Number of effective cutting edges on the circumference: 5
• Cutting length max APMXFF: 10 mm
