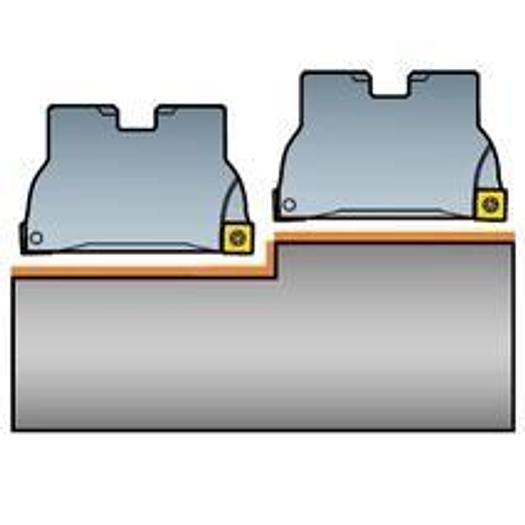

CoroMill 490 face and shoulder milling cutters - inch version

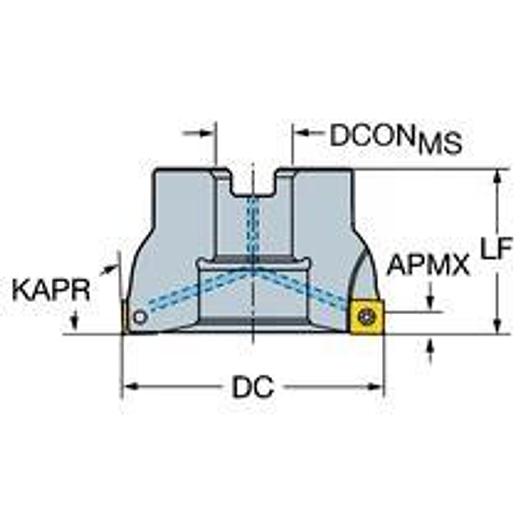

CoroMill® 490 shoulder milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -CIS -B (cutter retaining screw) -inch: 1 1/2|(DAH=60mm)
• Number of cutting parts (CICT): 8
• Number of effective cutting edges, circumferential (ZEFP): 8
• DCONMS: 38.1 mm
• Differential division (CPDF): 1
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 7800 1/min
• Functional length (LF): 63 mm
• Manufacturer's article number: A490-125J38.1-14M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 125 mm
• Cutting length, max. (APMXFFW): 10 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 490 -size 14 (490R-1404..)
• Tool design (BMC): Steel
• Mounting diameter: 38.1 mm
• Functional length L: 63 mm
• Number of effective cutting edges on the circumference: 8
• Cutting length max APMXFF: 10 mm
