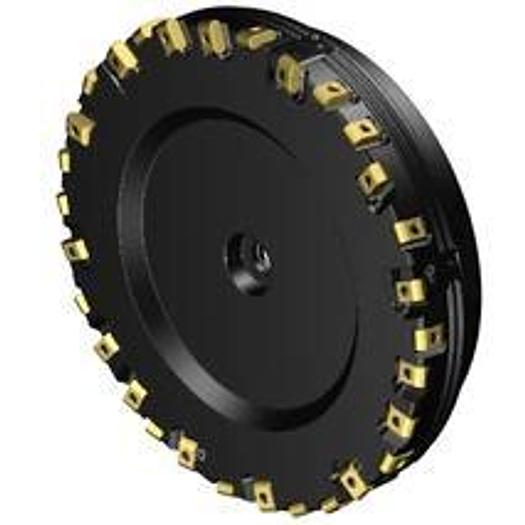

CoroMill 425 face milling cutter

CoroMill® 425 face milling cutter

• Adapter interface machine direction(ADINTMS): Cap mounting -metric: 250
• Number of effective cutting edges, circumferential (ZEFP): 30
• CICTCSW1: 15
• CICTCSW2: 15
• CUTINT_MASTERCSW1: CoroMill 425 -size 17 (425N-1707)
• CUTINT_MASTERCSW2: CoroMill 425 -size 17 (425N-1707)
• DCONMS: 203.65 mm
• Differential division (CPDF): 1
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 1880 1/min
• Setting angle (KAPR): 25 deg
• Functional length (LF): 63 mm
• Manufacturer's ArtNo: LA425-254P-17H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Body diameter (BD): 255.1 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 63 mm
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 254 mm
• Cutting diameter, max. (DCX): 261 mm
• Cutting length, max. (APMX): 0.9 mm
• Cutting direction (HAND): L
• Tool design (BMC): Steel
• Cutting diameter: 254 mm
• Cutting diameter max: 261 mm
• Mounting diameter: 203.65 mm
• Functional length L: 63 mm
• Number of effective cutting edges on the circumference: 30
