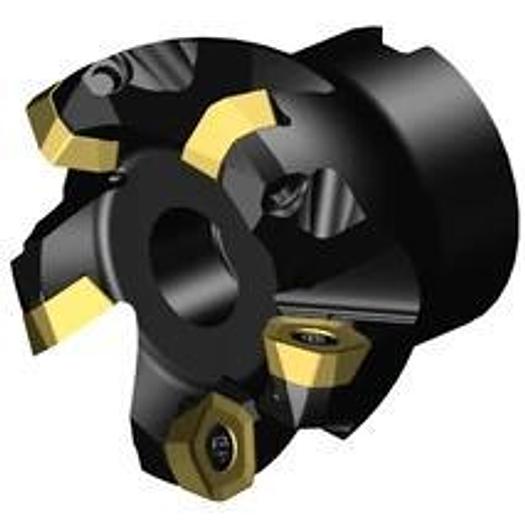

CoroMill 419 High-feed face and profile milling cutter - inch version

CoroMill® 419 face milling cutter

• Adapter interface machine direction(ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -inch:|3/4
• Number of cutting parts (CICT): 5
• Number of effective cutting edges, circumferential (ZEFP): 5
• DCONMS: 19.05 mm
• Differential division (CPDF): 1
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 15100 1/min
• Setting angle (KAPR): 19 deg
• Immersion depth, max.(AZ): 2 mm
• Immersion angle, max.(RMPX): 7 deg
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: A419-063R19-14M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 48.3 mm
• Cutting diameter, max. (DCX): 63.5 mm
• Cutting length, max. (APMXEFW): 8 mm
• Cutting length, max. (APMXFFW): 2 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 419 -size 1405 (419R-1405)
• Tool design (BMC): Steel
• Cutting diameter: 48.3 mm
• Cutting diameter max: 63.5 mm
• Mounting diameter: 19.05 mm
• Functional length L: 50 mm
• Number of effective cutting edges on the circumference: 5
