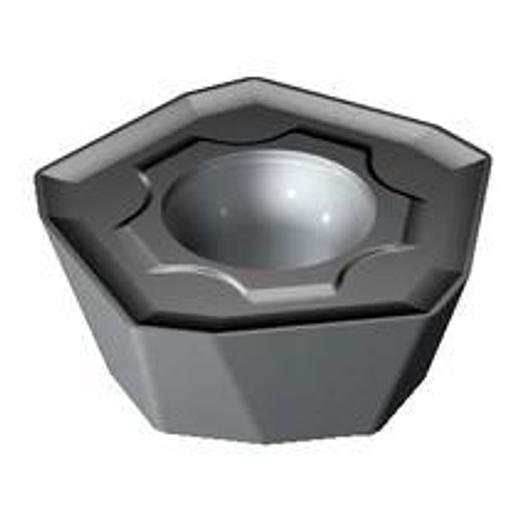

CoroMill 419 indexable inserts

CoroMill® 419 insert for milling

• Application Area: MU
• Coating Process Type: PVD
• Corner Radius Equivalent (REEQ): 4.5 mm
• Corner radius (RE): 0.8 mm
• Inscribed circle (IC): 13.5 mm
• Setting angle, main cutting edge (KRINS): 19 deg
• fz max: 0.80000000000000004 mm
• fz min: 0.34000000000000002 mm
• fz rec: 0.48999999999999999 mm
• Manufacturer's ArtNo: 419R-1405E-MM 1010
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 2 mm
• Cutting length, limited (LE): 9 mm
• Cutting length, max. (APMX): 2 mm
• Cutting edge height (S): 5.47 mm
• Cutting insert shape (SC): P
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 419 -size 1405
• Cutting direction (HAND): R
• Grade: 1010
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• TMC Order: 1
• vc max: 120 m/min
• vc min: 110 m/min
• vc rec: 120 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 0.8 mm
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 419 -size 1405
• Grade: 1010
• All ISO application areas: H
