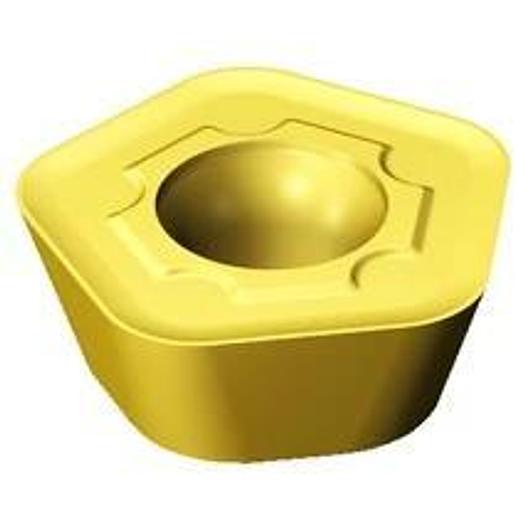

CoroMill 419 indexable inserts

CoroMill® 419 insert for milling

• Coating Process Type: CVD
• Corner Radius Equivalent (REEQ): 4.5 mm
• Corner radius (RE): 3 mm
• Inscribed circle (IC): 13.5 mm
• Setting angle, main cutting edge (KRINS): 19 deg
• Manufacturer's ArtNo: 419N-140530E-SM S40T
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 9 mm
• Cutting length, max. (APMX): 2 mm
• Cutting edge height (S): 5.47 mm
• Cutting insert shape (SC): P
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 419 -size 1405
• Cutting direction (HAND): N
• Grade: S40T
• Chip breaker, manufacturer designation (CBMD): SM
• Substrate Type: WC
• Corner radius R: 3 mm
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 419 -size 1405
• Grade: S40T
• All ISO application areas: M|S
