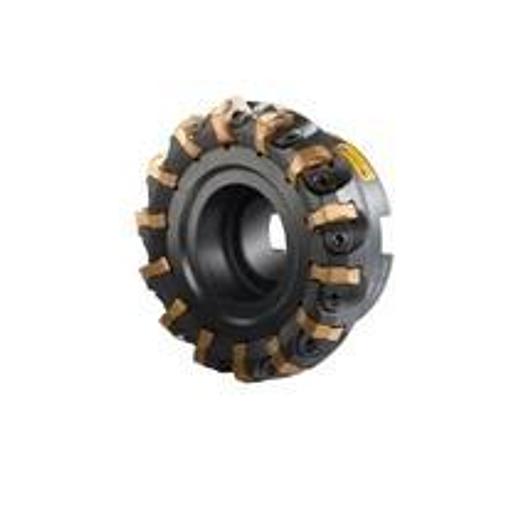

CoroMill 365 face milling cutter - metric version

CoroMill® 365 face milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -C (4 bolts) -metric: 60S
• Number of cutting parts (CICT): 28
• Number of effective cutting edges, circumferential (ZEFP): 28
• DCONMS: 60 mm
• Torque (TQ): 6 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 6800 1/min
• Setting angle (KAPR): 65 deg
• Functional length (LF): 63 mm
• Manufacturer's ArtNo: R365-200Q60-W15H
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Bolt circle diameter (DBC): 101.6 mm
• Cutting diameter (DC): 200 mm
• Cutting diameter, max. (DCX): 206.7 mm
• Cutting length, max. (APMX): 6 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): C
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 365 -size 15 (R365-1505ZNE)
• Tool design (BMC): Steel
• Cutting diameter: 200 mm
• Cutting diameter max: 206.7 mm
• Mounting diameter: 60 mm
• Functional length L: 63 mm
• Number of effective cutting edges on the circumference: 28
