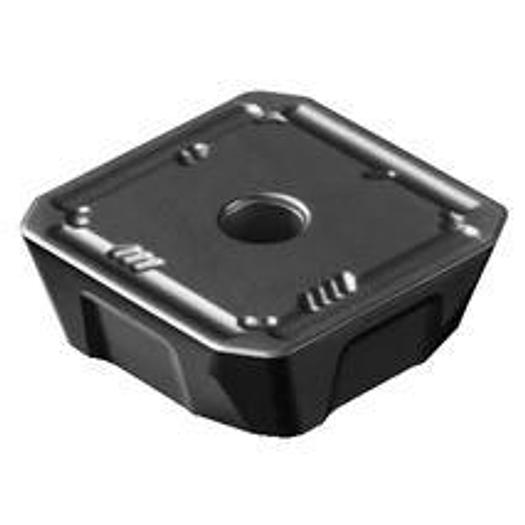

CoroMill 360 indexable inserts

CoroMill® 360 insert for milling

Application Area: MU

• Coating Process Type: CVD
• Corner radius (RE): 1.6 mm
• Inscribed Circle (IC): 18.94 mm
• Setting angle, main cutting edge (KRINS): 60 deg
• fz max: 0.68999999999999995 mm
• fz min: 0.29999999999999999 mm
• fz rec: 0.46000000000000002 mm
• Manufacturer's ArtNo: 360R-19 06M-KH 3040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 200 mm
• Cutting edge width (BS): 2.2 mm
• Cutting length, limited (LE): 15 mm
• Cutting length, max. (APMX): 13 mm
• Cutting edge height (S): 6.35 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 360 -1906
• Cutting direction (HAND): R
• Grade: 3040
• Chip breaker, manufacturer designation (CBMD): KH
• Substrate Type: WC
• TMC Order: 1
• vc max: 155 m/min
• vc min: 80 m/min
• vc rec: 115 m/min
• Material classification level 1 (TMC1): K
• Corner radius R: 1.6 mm
• Grade: 3040
• All ISO application areas: K
