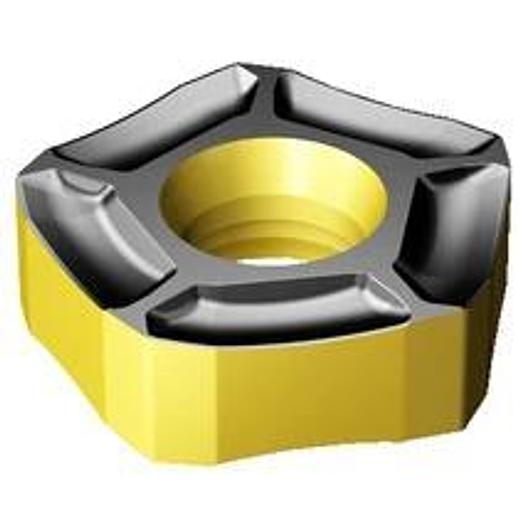

CoroMill 357 indexable inserts

CoroMill® 357 insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner chamfer width (CHW): 2.6 mm
• Corner bevel angle (KCH): 14.9 deg
• Corner radius (RE): 1 mm
• Inscribed Circle (IC): 24.4 mm
• Setting angle, main cutting edge (KRINS): 57 deg
• fz max: 0.59999999999999998 mm
• fz min: 0.20000000000000001 mm
• fz rec: 0.40999999999999998 mm
• Manufacturer's ArtNo: 357R-2408M-PM 4240
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 80 mm
• Cutting edge width (BS): 3 mm
• Cutting length, limited (LE): 13 mm
• Cutting length, max. (APMX): 10 mm
• Cutting edge height (S): 7.94 mm
• Cutting insert shape (SC): P
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 357 -size 2408
• Cutting direction (HAND): R
• Grade: 4240
• Chip breaker, manufacturer designation (CBMD): PM
• Substrate Type: WC
• TMC Order: 1
• vc max: 270 m/min
• vc min: 235 m/min
• vc rec: 250 m/min
• Material classification level 1 (TMC1): P
• Corner radius R: 1 mm
• Cutting insert size and shape_CUTINT_SIZESHAP: CoroMill 357 -size 2408
• Grade: 4240
• All ISO application areas: P|K
