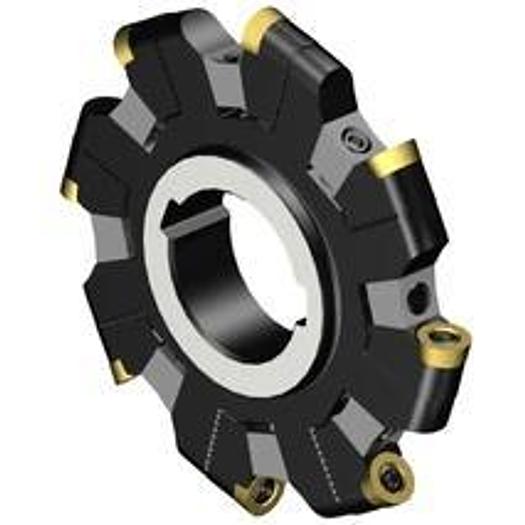

Three-sided cutting disc milling cutters - Metric version

CoroMill® 331 Adjustable three-sided cutting discs

• Adapter interface machine direction (ADINTMS): Arbor -ISO 240 -1 key drive -metric: 32
• Number of drives (DRVCT): 1
• Number of cutting parts (CICT): 8
• Number of effective cutting edges, circumferential (ZEFP): 8
• DCONMS: 32 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 15900 1/min
• Functional length (LF): 13 mm
• Manufacturer's ArtNo: N331.32-102S32EMQ
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum work engagement ratio (AERMXBFW): 0.26
• Hub thickness (THUB): 16 mm
• Hub diameter (DHUB): 47 mm
• Cutting diameter (DC): 102 mm
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 26.5 mm
• Grooving width, nominal dimension (CW): 10 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: metric RCKT 10T3M0
• Cutting diameter: 102 mm
• Mounting diameter: 32 mm
• Number of effective cutting edges on the circumference: 8
• Cutting depth max CD: 26.5 mm
