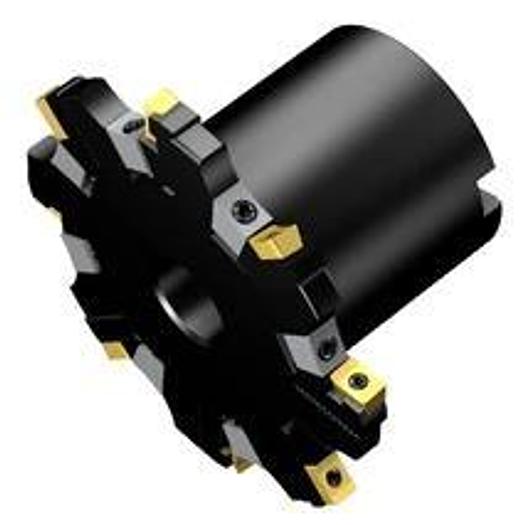

Three-sided cutting disc milling cutters - Metric version

CoroMill® 331 Adjustable three-sided cutting discs

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -C (4 bolts) -metric: 60S
• Number of cutting parts (CICT): 20
• Number of effective cutting edges, circumferential (ZEFP): 10
• DCONMS: 60 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 6300 1/min
• Functional length (LF): 63 mm
• Manufacturer item number: R331.32-315Q60RM23.50
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• LFN: 63 mm
• Bolt circle diameter (DBC): 101.6 mm
• Hub diameter (DHUB): 136 mm
• Cutting diameter (DC): 315 mm
• Cutting direction (HAND): R
• Cutting width, max.(CWX): 26.5 mm
• Cutting width, min.(CWN): 23.5 mm
• Cutting depth, max. (CDX): 88.5 mm
• Standard Document (STDLET): C
• Standard Number (STDNO): ISO6462
• Grooving width, nominal dimension (CW): 23.5 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 331 -size 14 (N/R331.1A-14RE0.20-1.54)
• Mounting diameter: 60 mm
• Number of cutting parts CIC: 20 mm
• Cutting diameter: 315 mm
• Functional length L: 63 mm
