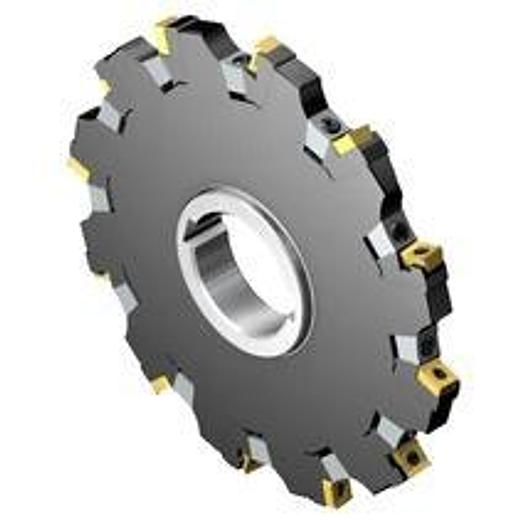

Three-sided cutting disc milling cutters - Metric version

CoroMill® 331 Adjustable three-sided cutting discs

• Adapter interface machine direction (ADINTMS): Arbor -ISO 240 -2 key drives -metric: 50
• Number of drives (DRVCT): 2
• Number of cutting parts (CICT): 12
• Number of effective cutting edges, circumferential (ZEFP): 6
• DCONMS: 50 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 8000 1/min
• Functional length (LF): 22.5 mm
• Manufacturer item number: N331.32-200S50QM20.50
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• LFN: 22.5 mm
• Hub thickness (THUB): 24.5 mm
• Hub diameter (DHUB): 69 mm
• Cutting diameter (DC): 200 mm
• Cutting direction (HAND): N
• Cutting width, max.(CWX): 23.5 mm
• Cutting width, min.(CWN): 20.5 mm
• Cutting depth, max. (CDX): 64.5 mm
• Grooving width, nominal dimension (CW): 20.5 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 331 -size 14 (N/R331.1A-14RE0.20-1.54)
• Mounting diameter: 50 mm
• Number of cutting parts CIC: 12 mm
• Cutting diameter: 200 mm
• Functional length L: 22.5 mm
