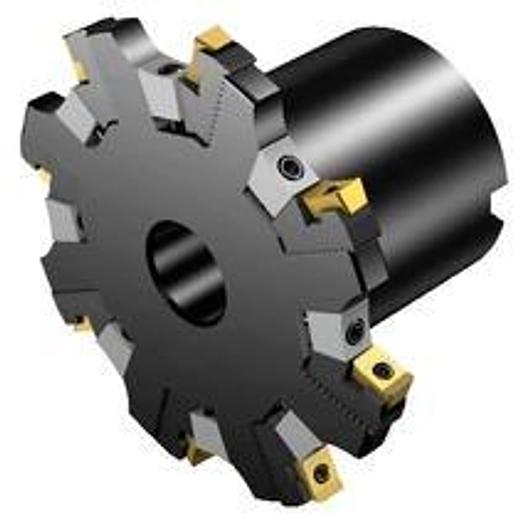

Double-sided cutting disc milling cutters - inch version

CoroMill® 331 Adjustable double-sided cutting discs

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -C (4 bolts) -inch: 2 1/2
• AERMX: 0.274
• Number of cutting parts (CICT): 20
• Number of effective cutting edges, circumferential (ZEFP): 20
• DCONMS: 63.5 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 7600 1/min
• Functional length (LF): 32.2072 mm
• Manufacturer's article number: R331.52-305R63NML
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 299 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 30.2 mm
• Life Cycle Status (LCS): 30
• Bolt circle diameter (DBC): 101.6 mm
• Hub diameter (DHUB): 135.9916 mm
• Cutting diameter (DC): 304.8 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 83.3882 mm
• Standard Document (STDLET): C
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54)
• Mounting diameter: 63.5 mm
• Functional length L: 32.2072 mm
• Number of effective cutting edges on the circumference: 20
• Body diameter B: 299 mm
