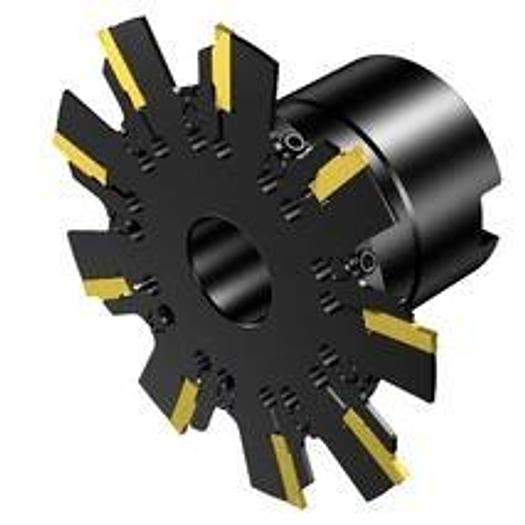

CoroMill 329 Slotting cutter - Metric version

CoroMill® 329 slot milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric:|22
• Number of cutting parts (CICT): 6
• Number of effective cutting edges, circumferential (ZEFP): 6
• DCONMS: 22 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 4300 1/min
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: 329-100Q22-G
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 42 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 50 mm
• Life Cycle Status (LCS): 20
• Hub diameter (DHUB): 42 mm
• Cutting diameter (DC): 100 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 15 mm
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size G (N123G2-, no R/L)
• Mounting diameter: 22 mm
• Functional length L: 50 mm
• Number of effective cutting edges on the circumference: 6
• Body diameter B: 42 mm
