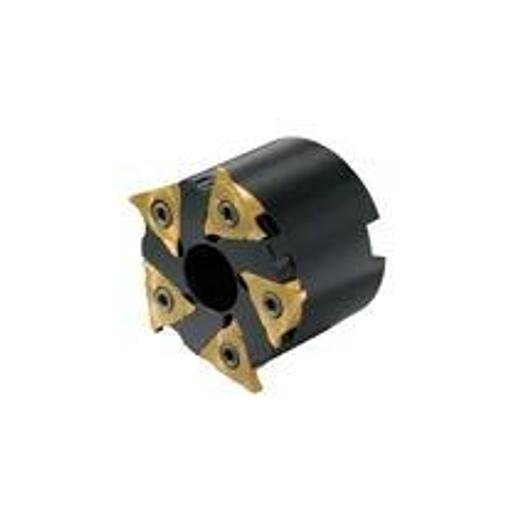

CoroMill 328 slot milling cutter

CoroMill® 328 slot milling cutter

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric:|22
• Number of cutting parts (CICT): 5
• Number of effective cutting edges, circumferential (ZEFP): 5
• DCONMS: 22 mm
• Torque (TQ): 6.5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 11900 1/min
• Functional length (LF): 40 mm
• Manufacturer's ArtNo: 328-063Q22-13M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10005
• Body diameter (BD): 51 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 40 mm
• Life Cycle Status (LCS): 20
• Hub diameter (DHUB): 51 mm
• Cutting diameter (DC): 63 mm
• Cutting direction (HAND): R
• Cutting depth, max.(CDX): 5 mm
• Standard Document (STDLET): A
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 328 -size 13 (328R13)
• Mounting diameter: 22 mm
• Functional length L: 40 mm
• Number of effective cutting edges on the circumference: 5
• Body diameter B: 51 mm
