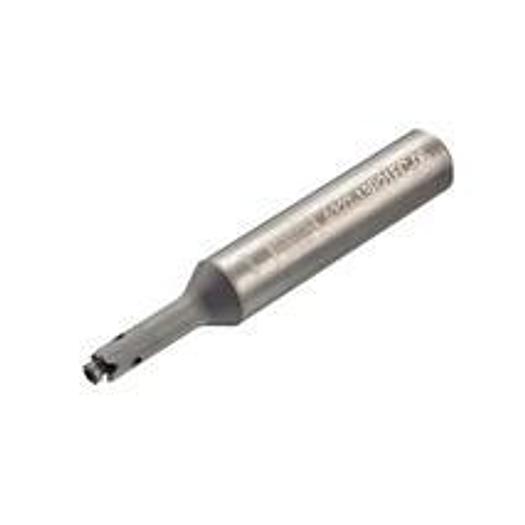

CoroMill 327 slot milling cutter - inch version

Weldon adapter to CoroMill® 327

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -inch: 5/8
• DCONMS: 15,875 mm
• DCONWS: 12 mm
• Torque (TQ): 6.5 Nm
• Functional length (LF): 154.3 mm
• Manufacturer's ArtNo: A327-16B85EC-12
• Manufacturer: SANDVIK COROMANT
• IC Code: 10005
• Body diameter (BD1): 12 mm
• Body cone setting angle (BHTA2): 30 deg
• Coolant pressure (CP): 20 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB1): 79.3 mm
• Length Body Diameter 1(LB2): 83.11 mm
• Life Cycle Status (LCS): 20
• Axial runout setting (ADINTWS): CoroMill 327 -size 12
• Standard document (STDLET): WE
• Standard number(STDNO): ISO3338-2
• Tool design (BMC): Carbide
• Axial runout setting ADINTW: CoroMill 327 -size 12
• Adapter interface machine direction ADINTM: Weldon (DIN6535-HB) -inch: 5/8
• Length Body Diameter 1 LB: 79.3 mm
• Functional length L: 154.3 mm
• Body diameter BD: 12 mm
